Model Y Front SuspensionModel Y 前悬架结构设计

The Model Y front end runs a double-wishbone suspension: upper and lower control arms, a steering knuckle, a coil-over damper and an anti-roll bar. My work followed one order: understand what each part does, find where it is overstressed, make it stronger, then work out how to build it at a sensible cost.Model Y 前悬架是双叉臂结构，由上下控制臂、转向节、减震器和弹簧、防倾杆组成。我的工作按一个顺序走：先弄清每个零件干什么，再找出哪里受力过大，把它改结实，最后看怎么造、成本怎么降。

01Functional analysis零件功能分析

I worked through the main front-suspension parts and wrote up what each one does, how it is built and which loads it carries. The steering knuckle, damper and anti-roll bar analyses went into a 7-page report.我把前悬架的主要零件逐个过了一遍，写清楚每个零件的功能、结构和受力。其中转向节、减震器、防倾杆的分析整理成了一份 7 页的报告。

• Steering knuckle: connects the upper and lower arms, the steering tie rod, the hub bearing and the brake caliper. It is where suspension, steering and braking meet, so material and heat-treatment quality matter most here.转向节：连着上下控制臂、转向拉杆、轮毂轴承和制动卡钳，是悬架、转向、制动三个系统的交汇点，所以材料和热处理质量最要紧。
• Damper: a twin-tube unit inside the coil spring. It turns spring motion into heat and damps rebound harder than compression, so the wheel settles quickly after a bump.减震器：双筒式，外面套着螺旋弹簧。它把弹簧的振动变成热量消耗掉，回弹时的阻尼比压缩时大，车轮过坎后能很快稳住。
• Anti-roll bar: a U-shaped spring-steel bar tied to the left and right lower arms. It only twists when the two sides move differently, so it reduces body roll in corners without stiffening the ride on straight roads.防倾杆：一根 U 形弹簧钢杆，两端连着左右下控制臂。只有左右两边行程不一样时它才扭转，所以能减少过弯侧倾，又不影响直线行驶的舒适性。

023D model and static analysis三维建模与静力分析

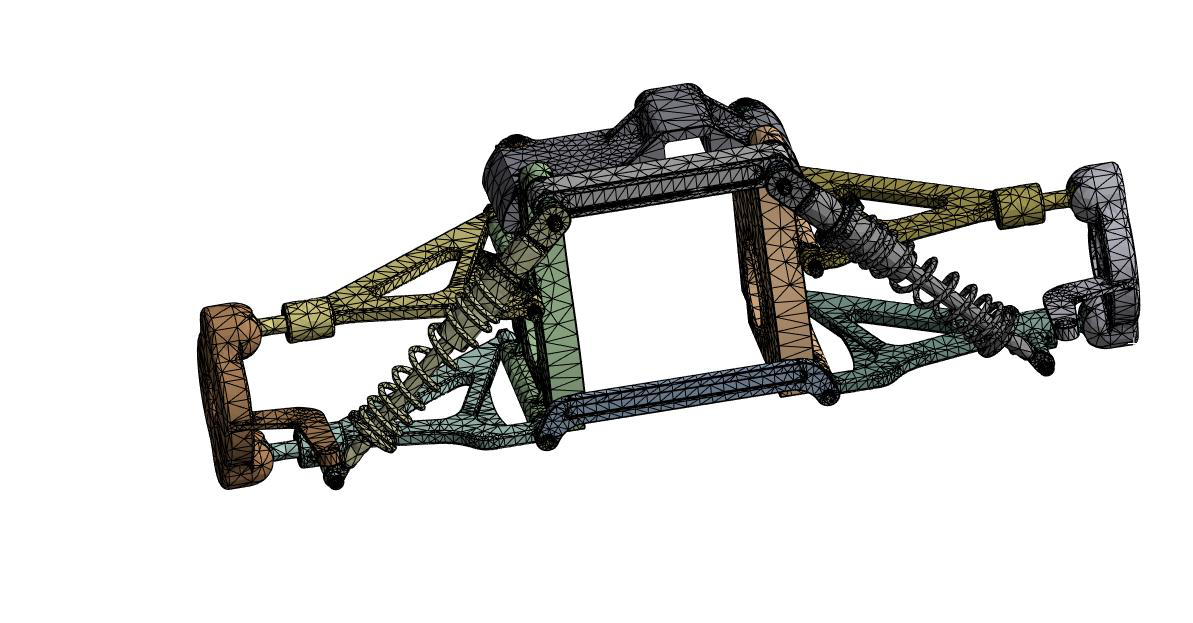

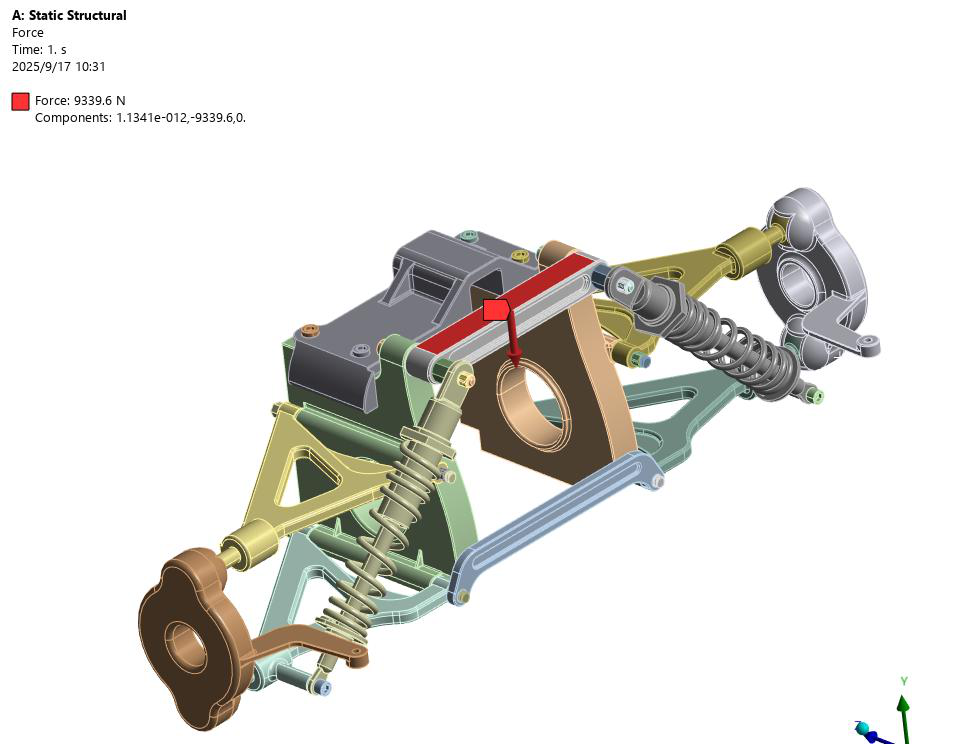

I built a simplified 3D model of the front suspension in SolidWorks, covering the control arms, knuckles, dampers and subframe. Estimating the key dimensions first and then building the model feature by feature shortened the design cycle by 30%. The model then went into ANSYS for static structural analysis under suspension loads, with the frame mounts fixed.我在 SolidWorks 里建了前悬架的简化三维模型，包括控制臂、转向节、减震器和副车架。先把关键尺寸估算出来，再一个特征一个特征地建模，设计周期缩短了 30%。模型导入 ANSYS，固定车架安装点，按悬架载荷做静力分析。

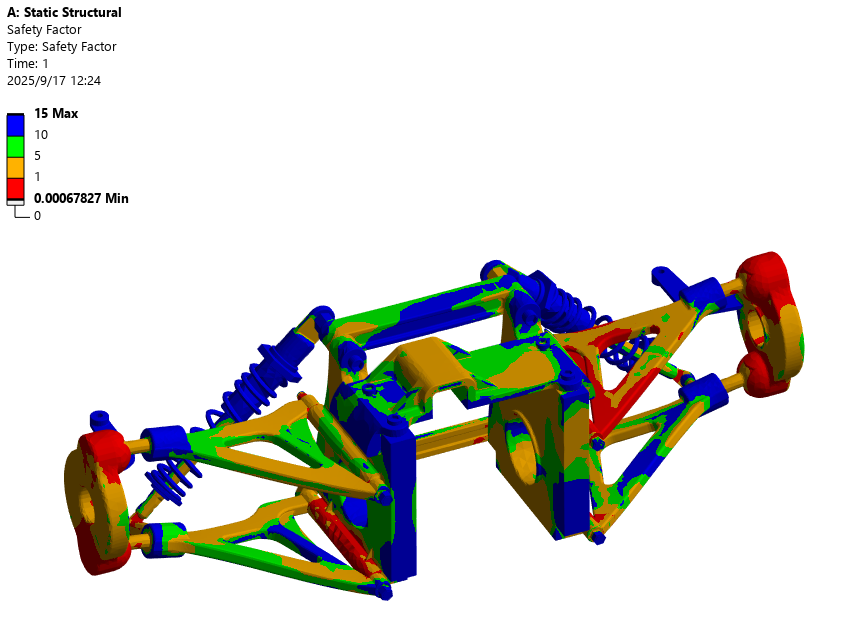

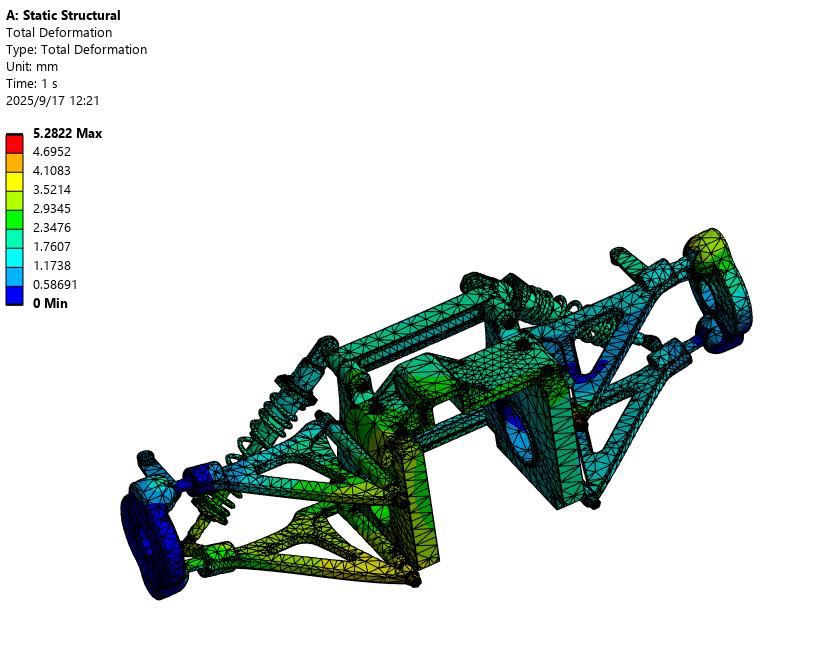

The safety-factor plot shows where the stress is. The root of the lower control arm, where it joins the frame, had far less margin than the rest of the part, while the middle of the arm had material to spare.安全系数图能看出应力集中在哪。下控制臂和车架连接的根部，裕度比其他地方低得多；臂的中段材料反而有富余。

03Strength optimisation强度优化

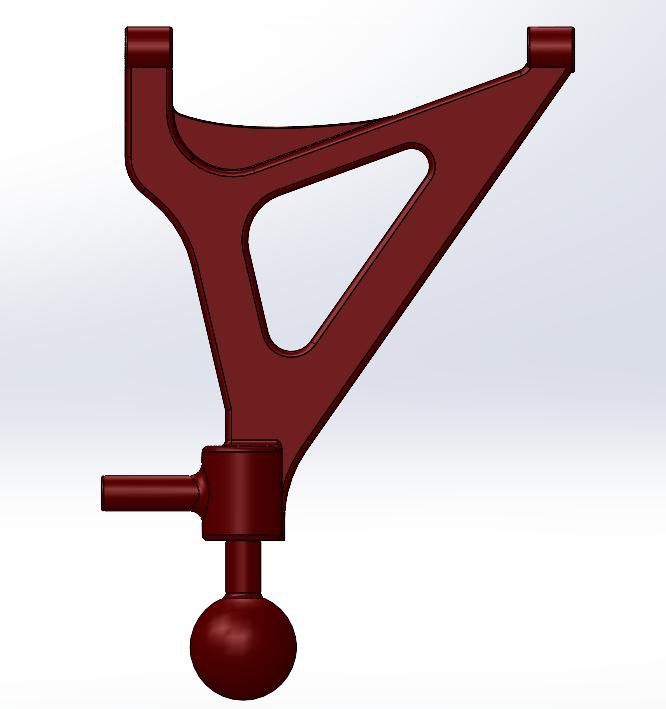

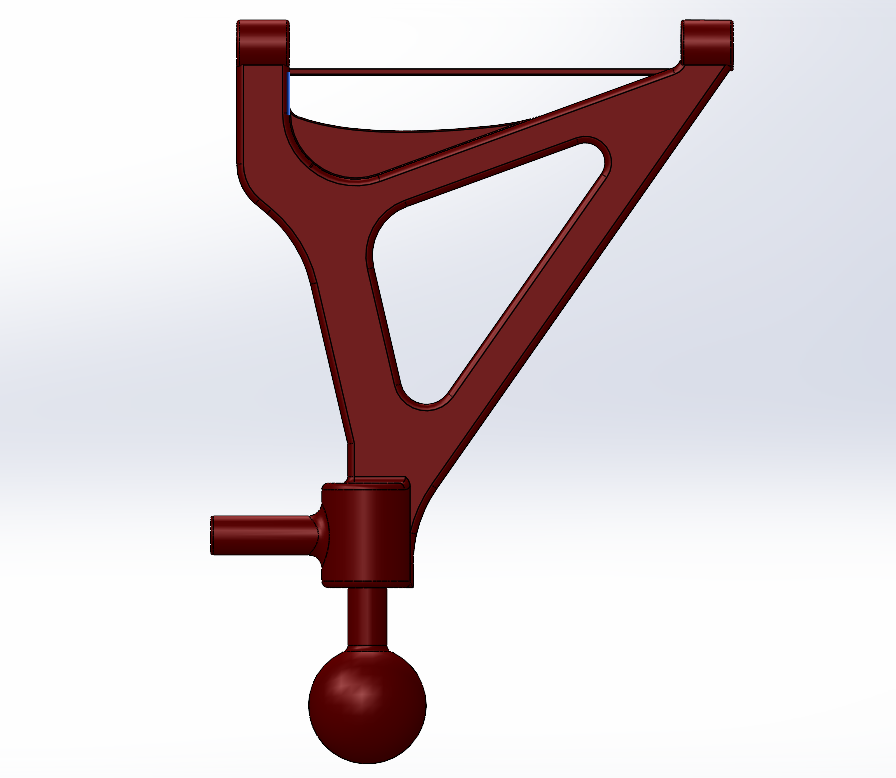

I reworked the lower control arm around those high-stress regions: larger fillets and stiffening ribs at the root and around the ball-joint seat, a continuous rib along the main arm, and a bigger opening in the lightly loaded middle to take weight out. Material moved from where it was not working to where the load is, and part strength went up 15%.针对这些高应力区，我改了下控制臂的结构：根部和球头座加大圆角、加加强筋，主臂上加一道连续的筋，受力小的中段把开孔放大来减重。等于把材料从用不上的地方挪到受力的地方，零件强度提升了 15%。

04Manufacturability and cost可制造性与成本

For the reworked arm I compared three production routes: hot forging, high-pressure die casting and stamped-and-welded steel, judged on part cost, strength and fatigue, design freedom and output at volume. Forging gives the best fatigue life. Die casting can form the new ribs and openings in one shot and is the fastest at volume. Stamping is cheapest per part, but the welds become fatigue weak points. For a high-volume model I recommended die casting, with vacuum casting and T6 heat treatment to make up the strength gap.改完的控制臂怎么造，我比较了三种工艺：热模锻、高压铸造、冲压焊接，从单件成本、强度和疲劳、设计自由度、量产效率四个方面打分。锻造的疲劳寿命最好；压铸能一次做出新加的筋和开孔，量产节拍最快；冲压焊接单件最便宜，但焊缝容易成为疲劳薄弱点。对走量的车型，我建议用高压铸造，再配合真空压铸和 T6 热处理把强度补上来。

Day to day I drew 2D engineering drawings and compiled BOMs. Bringing in local suppliers supported a reduction of about 10% in overall manufacturing cost.日常工作是画 2D 工程图、编 BOM。我还引入了本地供应商，支持整体制造成本降低约 10%。

05What I took from it这段实习练了什么

Designing one part inside a whole system: know its job first, then check its loads and strength, then decide how it gets made and what it costs.在整个系统里设计一个零件：先弄清它的作用，再核它的受力和强度，最后定下怎么造、花多少钱。
